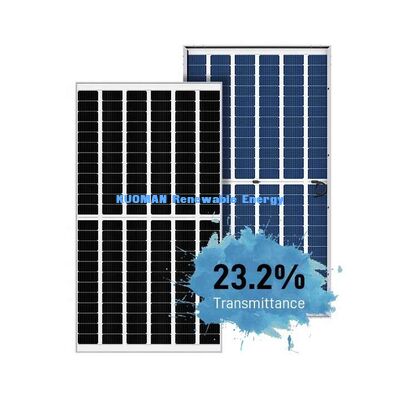

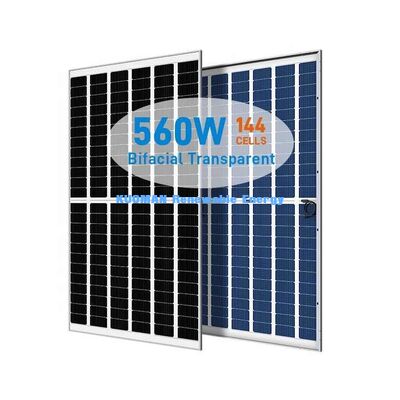

Frameless Glass 540W 550W Mono Perc Solar Panels

Frameless Glass 540W 550W Mono Perc Solar Panels
Frameless Glass 540W 550W Mono Perc Solar Panels Frameless Glass 540W 550W Mono Perc Solar Panels Frameless Glass 540W 550W Mono Perc Solar Panels Frameless Glass 540W 550W Mono Perc Solar Panels

Büyük resim :  Frameless Glass 540W 550W Mono Perc Solar Panels

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: Kuoman
Model numarası: KM500-600W Güneş Paneli
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1
Fiyat: USD1-100/pcs
Ambalaj bilgileri: standart uluslararası karton ambalaj
Teslim süresi: genel iki hafta, tam miktara göre daha fazla miktar
Ödeme koşulları: L/K, L/K
Yetenek temini: 2000BTU
İletişim

Frameless Glass 540W 550W Mono Perc Solar Panels

Açıklama
İsim: Mono Perc Güneş Panelleri Boyut: 182mmx182mm
Panel Verimliliği: % 22 Panel boyutları: 2384x1303x35mm
Modül Ağırlığı: 33 kg

Frameless Glass 540W 550W Mono Perc Solar Panels



Structural Parameters
Cells
144pcs 182x91mm Monocrystalline solar cells
Module Dimension
2384x1303x35mm(LxWxH)
Module Weight
33kg
frame
Anodized aluminum profile
Junction Box
Rated current:25A,IP68,TUV
Cable
Length Negative 400mm/Positive 300mm
Connector
Compatible with MC4

Frameless Glass 540W 550W Mono Perc Solar Panels 0

STC
Maximum Power (Pmax)
540W
550W
560W
425W
430W
Maximum Power Voltage (Vmp)
40.72V
40.98V
41.24V
31.70V
31.88V
Maximum Power Current (Imp)
13.27A
13.43A
13.59A
13.41A
13.49A
Open-circuit Voltage (Voc)
49.33V
49.64V
49.95V
38.30V
38.49V
Short-circuit Current (Isc)
13.97A
14.14A
14.30A
14.15A
14.23A
STC
Irradiance 1000W/m2,cell temperature 25℃,AM1.5G
Operating Conditions
Maxi System Voltage
1000V/1500V DC
Temperature range
-40°C~+85°C
Series Fuse Rating
15A
NOTC
45±2℃
Temperature Coefficient of Isc(α-Isc)
+0.033%/℃
Temperature Coefficient of Voc(β-Voc)
-0.29%/℃
Temperature Coefficient of Pmax(Y-Pmp)
-0.39%/℃

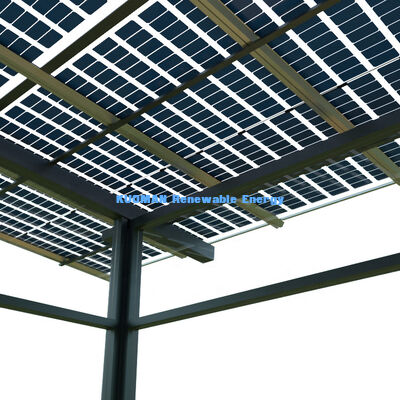

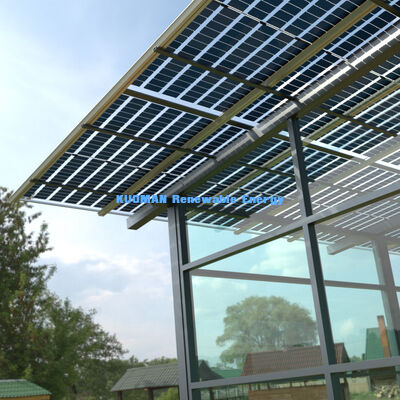

KUOMAN Case:

Frameless Glass 540W 550W Mono Perc Solar Panels 1

Frameless Glass 540W 550W Mono Perc Solar Panels 2
